Product information
Processing Time: 3 Business Days (Estimated)
Details
Product Features:

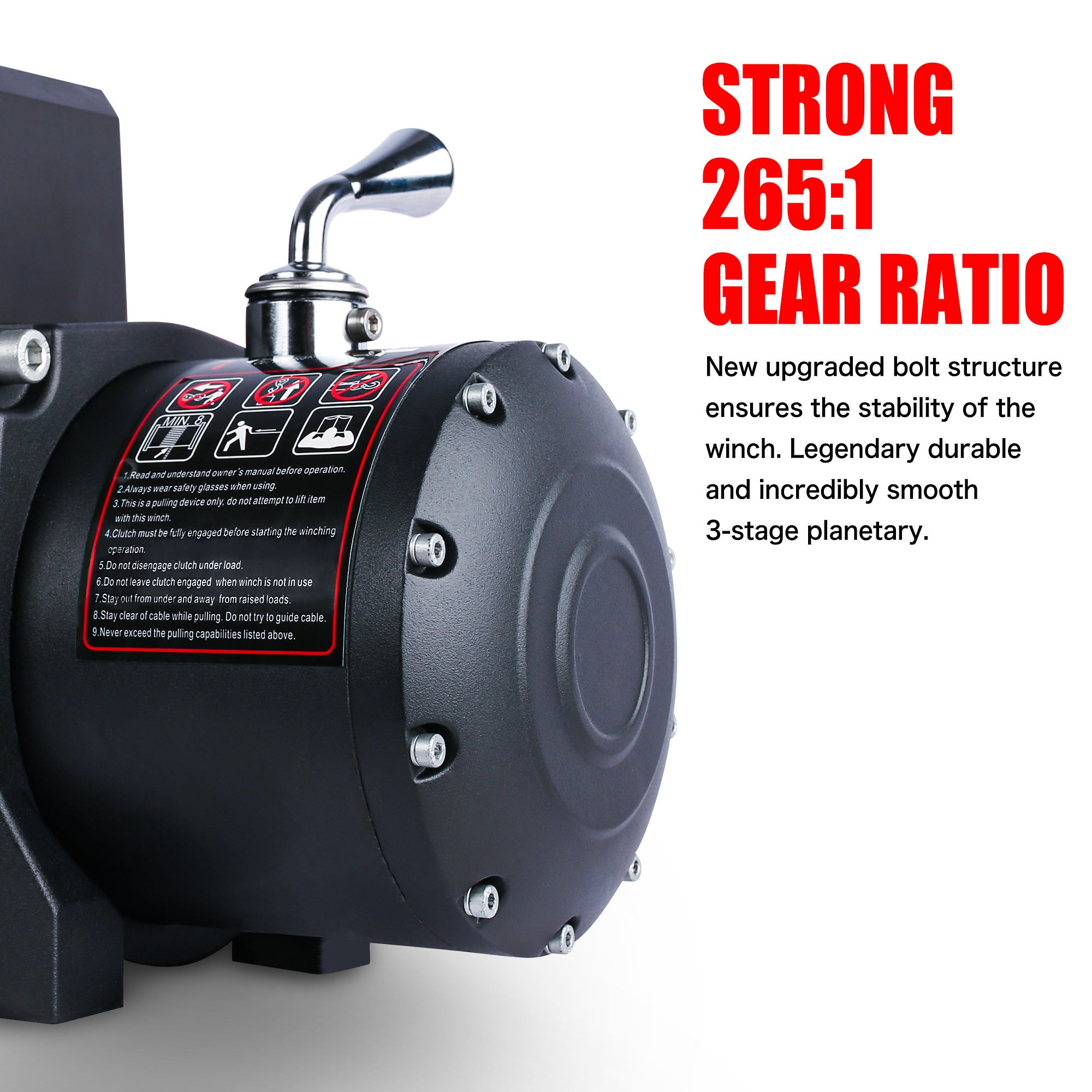

The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).

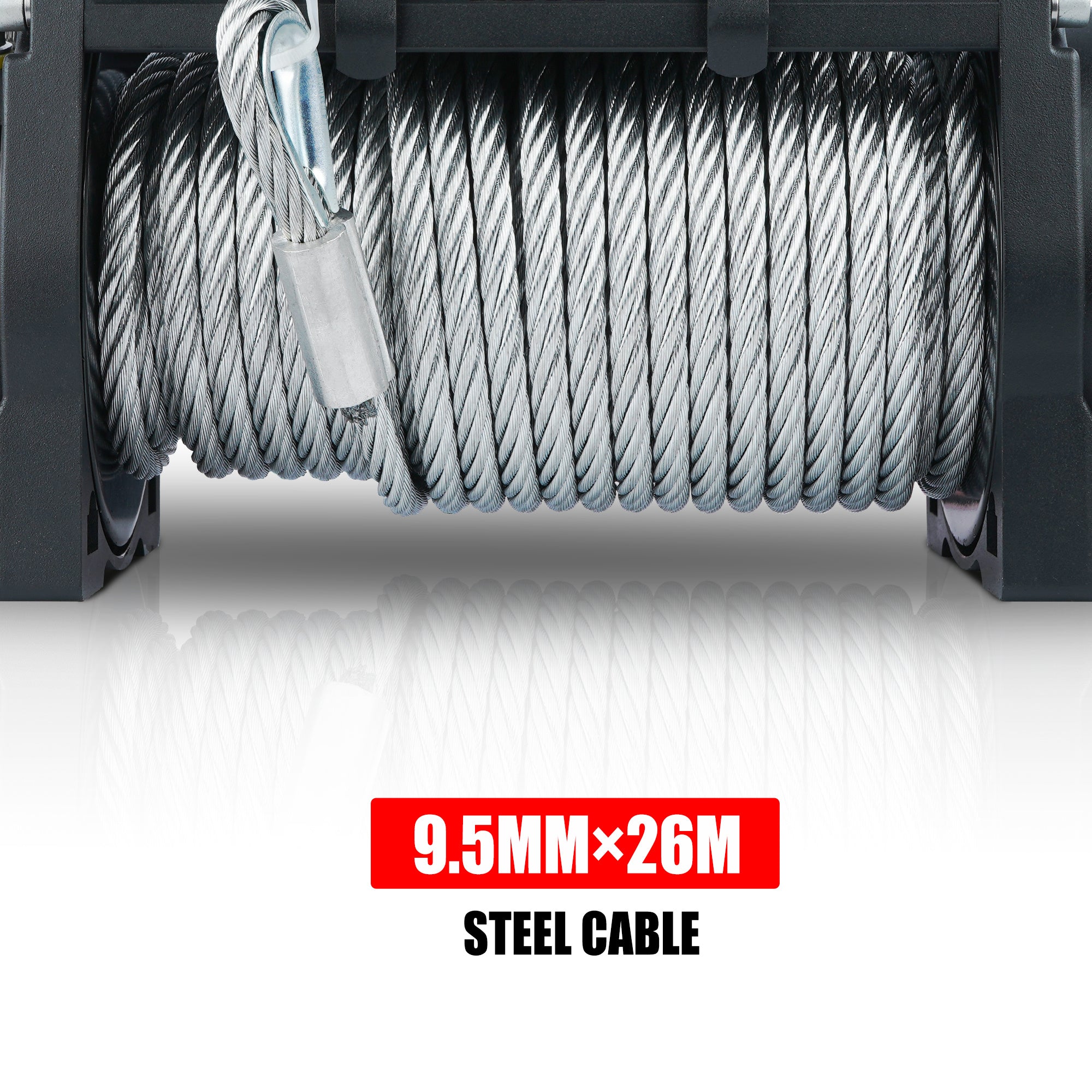

9.5MM*26M Steel Cable High Tensile and Impact Toughess. Resistant to damage.

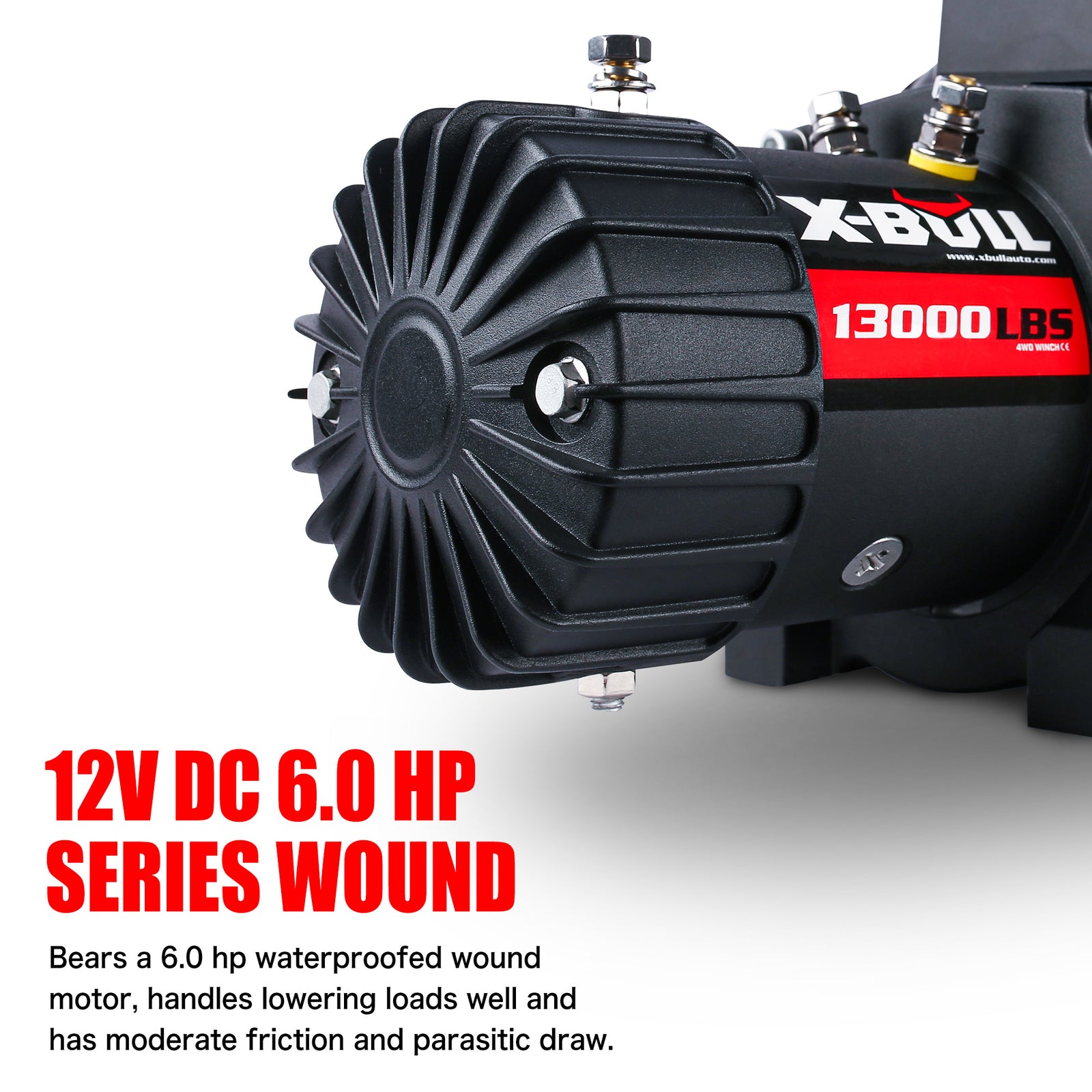

Efficient and durable 3-stage planetary steel gear provides greater traction for the 6.0HP series motors.
Ease-of-use and to turn, handle clutch fits perfectly in the hand even when wearing winching gloves.
Description:
Specification

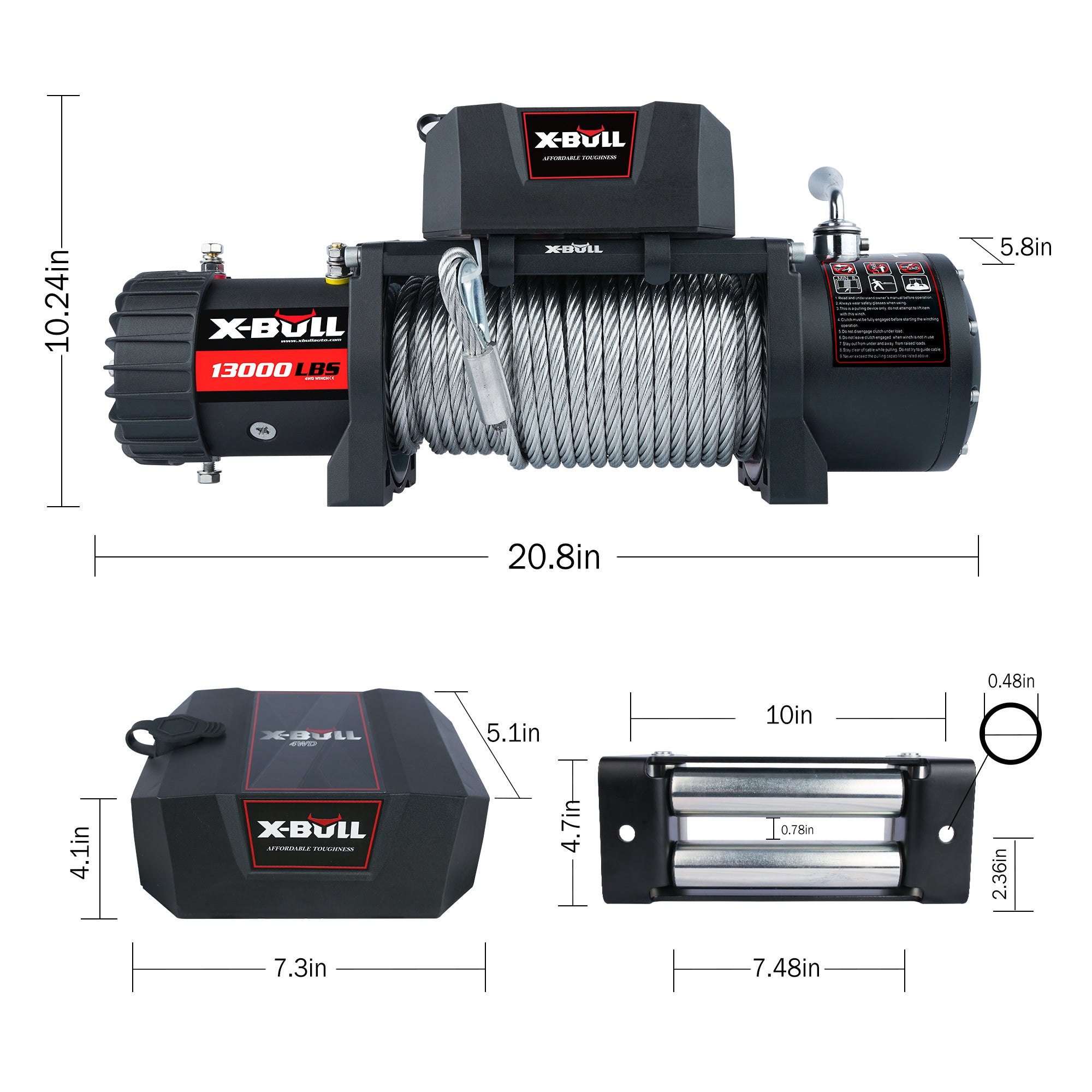

Rated Line Pull: 13000 lbsMotor: 6.0hpGear Ratio: 265:1Recommended Battery: 650CCA MinimumRemote Control:1 PC Wireless Control / 1 PC Wire ControlControl: Remote Switch,12ft(3.7m)LeadCable Length: 9.5mm x 26mGear Train: 3 Stage planetaryBattery Leader: 2gauge,72"(1.83m)Fairlead: Aluminium Hawse FairleadWeight: 84lbs (37.5Kgs)Material: Stainless SteelBrake: Automatic Load-Holding BrakeDrum Size: 2.52" × 8.82" (64mm × 224mm)Mounting Bolt Pattern: 10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)Cable Material:steel cableDimensions: 530mm×160mm×218mm
IN THE BOX

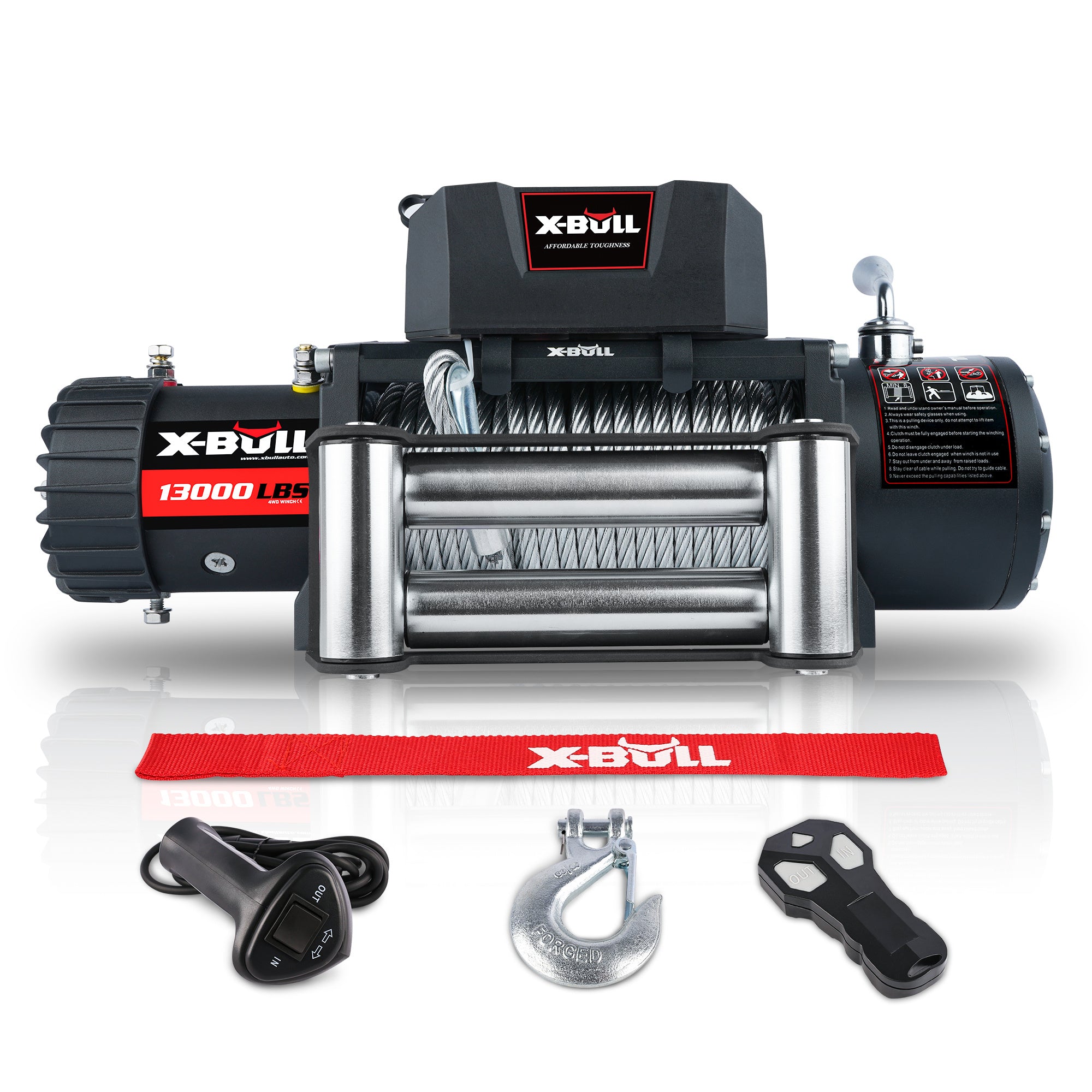

13000LBS DC 12V Winch × 1Clevis Hook × 1Set of Bolts × 1Set of Wire Cables × 1Control Box × 1Wireless Remote Controller × 1Hand Remote Controller × 1Fairlead × 1User Manual × 1
Notice
1.please read the instructions carefully and wire according to the instructions. Winches are electrical products that can cause short circuits and heat or smoke if wiring is wrong.2.All winches are provided with a red cable marking to identify that 5 cable wraps remain on the winch drum when this mark appears at the rollers.No recovery should be attempted byong
