Product information
Processing Time: 3 Business Days (Estimated)
Details
Product Features:
Synthetic Rope has good resistance to bending fatigue, abrasion resistance, UV protection and chemical resistance. Synthetic Rope is safer than steel,when the rope breaks.
Efficient and durable 3-stage planetary steel gear provides greater traction for the 5.6HP series motors.

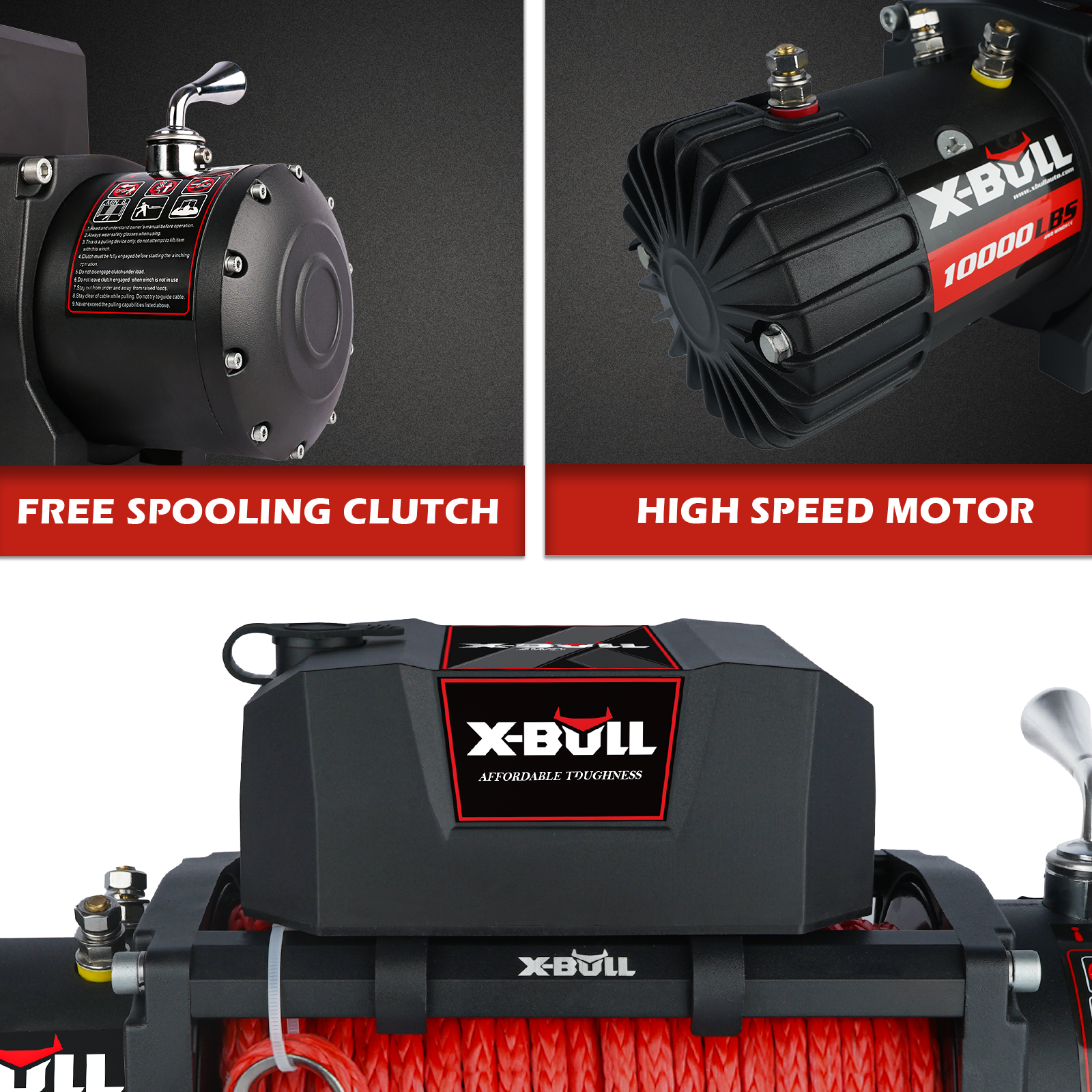

Ease-of-use and to turn, handle clutch fits perfectly in the hand even when wearing winching gloves.
The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).
Description:
Description:

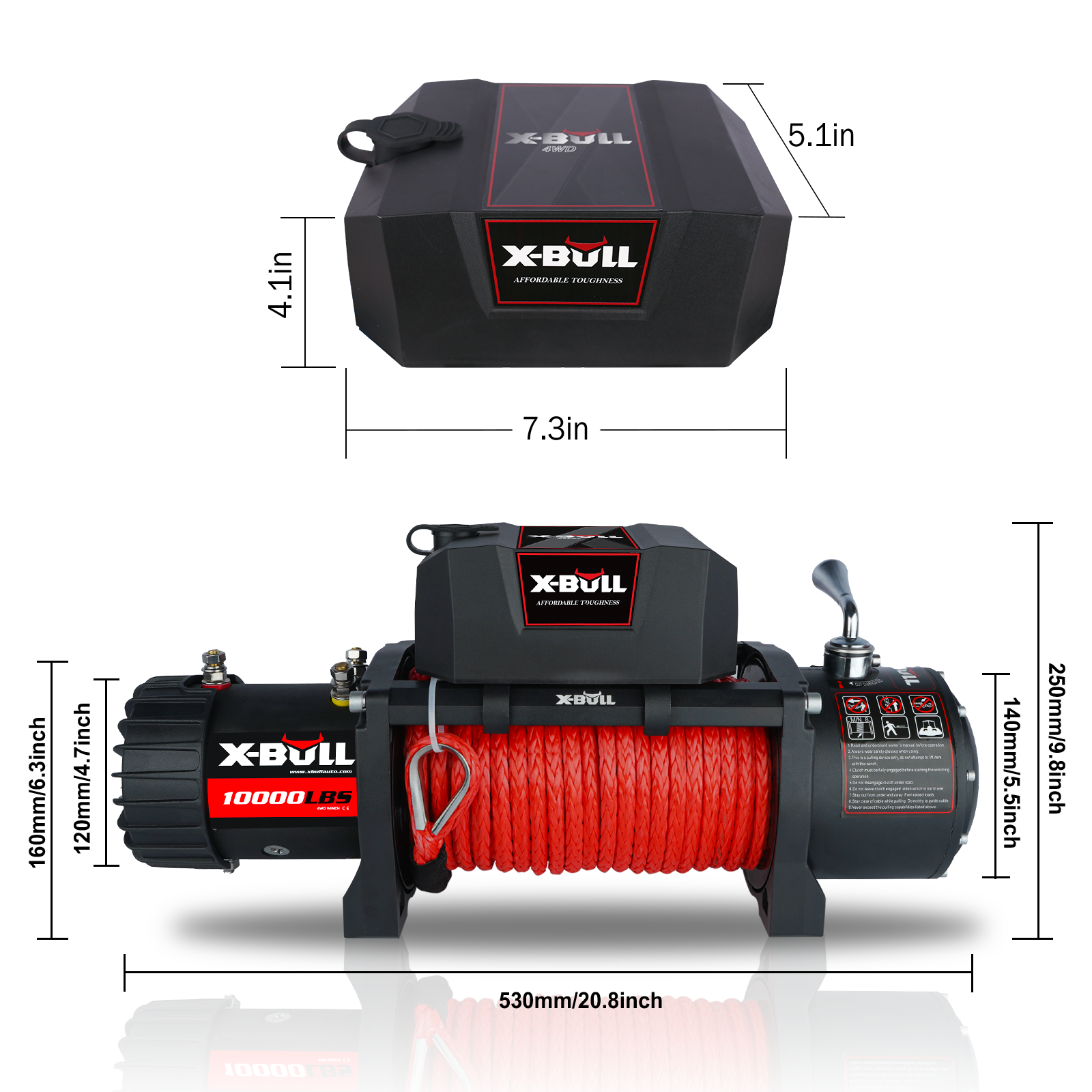

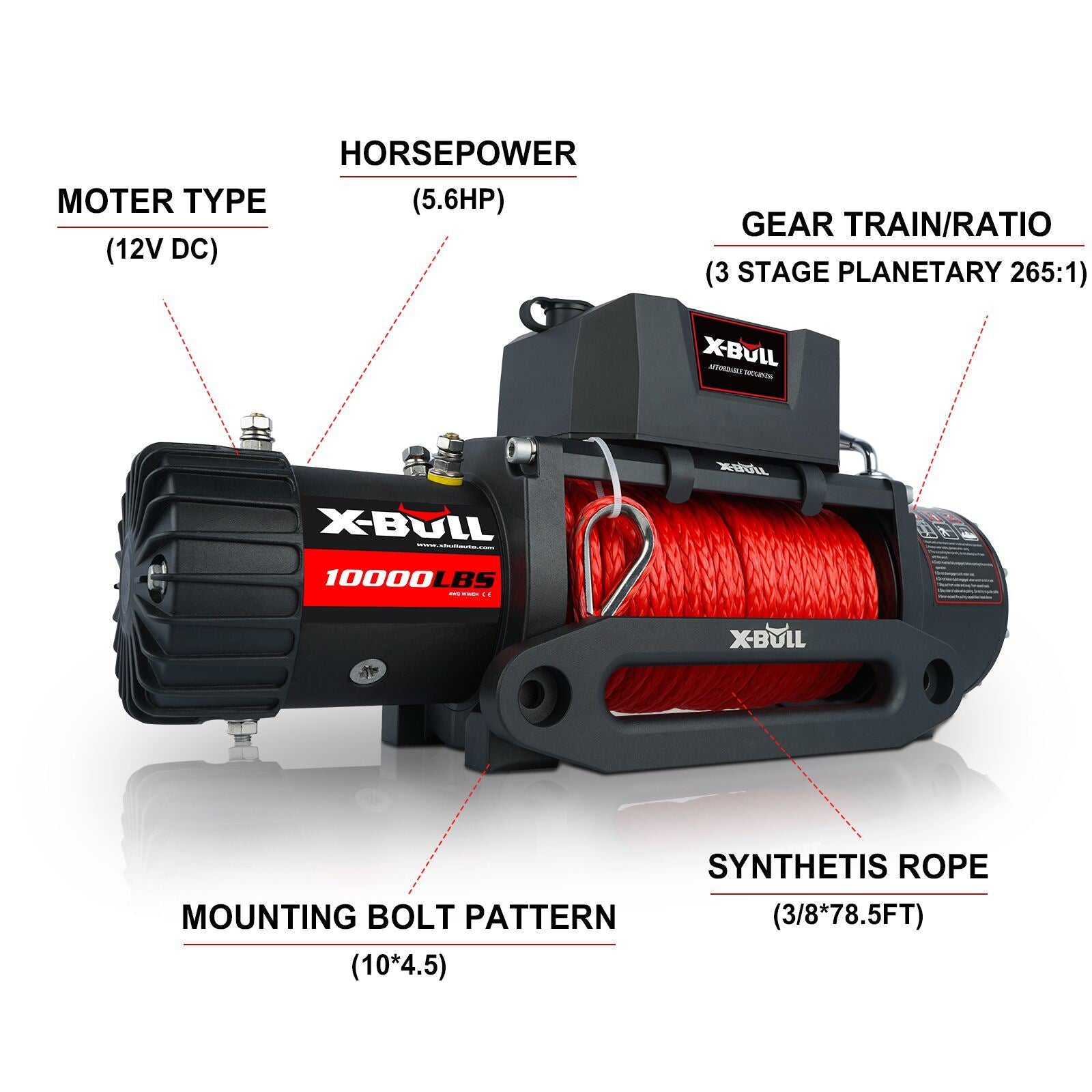

Rated Line Pull: 10000 lbsMotor: 5.6hpGear Ratio: 265:1Recommended Battery: 650CCA MinimumRemote Control:1 PC Wireless Control / 1 PC Wire ControlControl: Remote Switch,12ft(3.7m)LeadCable Length: 9mm x 18mGear Train: 3 Stage planetaryBattery Leader: 2gauge,72"(1.83m)Fairlead: Aluminium Hawse FairleadWeight: 59.5lbs (27.0Kgs)Material: Stainless SteelBrake: Automatic Load-Holding BrakeDrum Size: 2.52" × 8.82" (64mm × 224mm)Mounting Bolt Pattern: 10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)Cable Material:Synthetic RopeDimensions: 530mm×160mm×218mm
IN THE BOX
10000LBS DC 12V Winch × 1Clevis Hook × 1Set of Bolts × 1Set of Wire Cables × 1Control Box × 1Wireless Remote Controller × 1Hand Remote Controller × 1Fairlead × 1User Manual × 1
