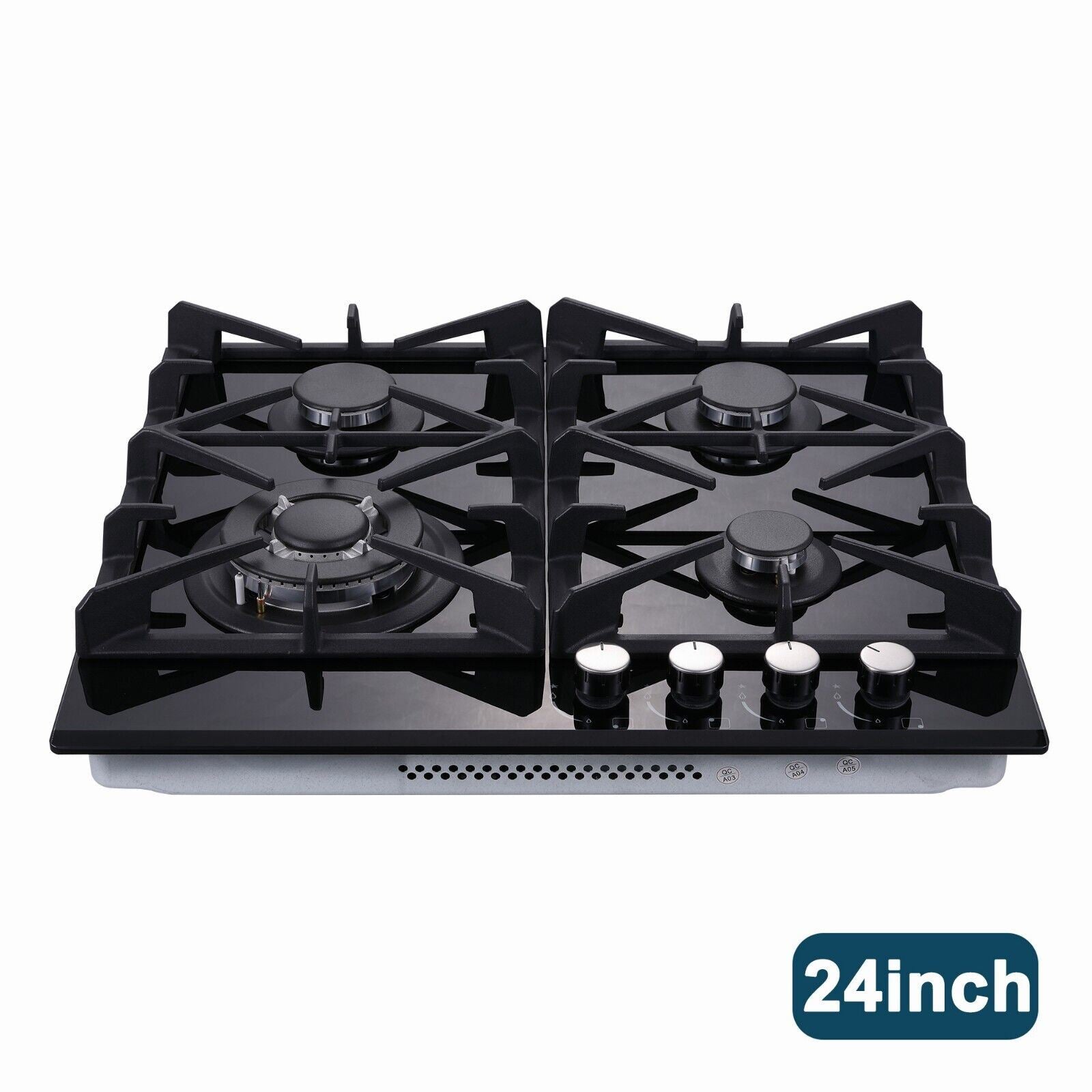

Gas Cooktop 24 inch Black Tempered Glass 4 Burners Built-in Hob NG/LPG Convertible

Processing Time: 2 Business Days (Estimated)

Details

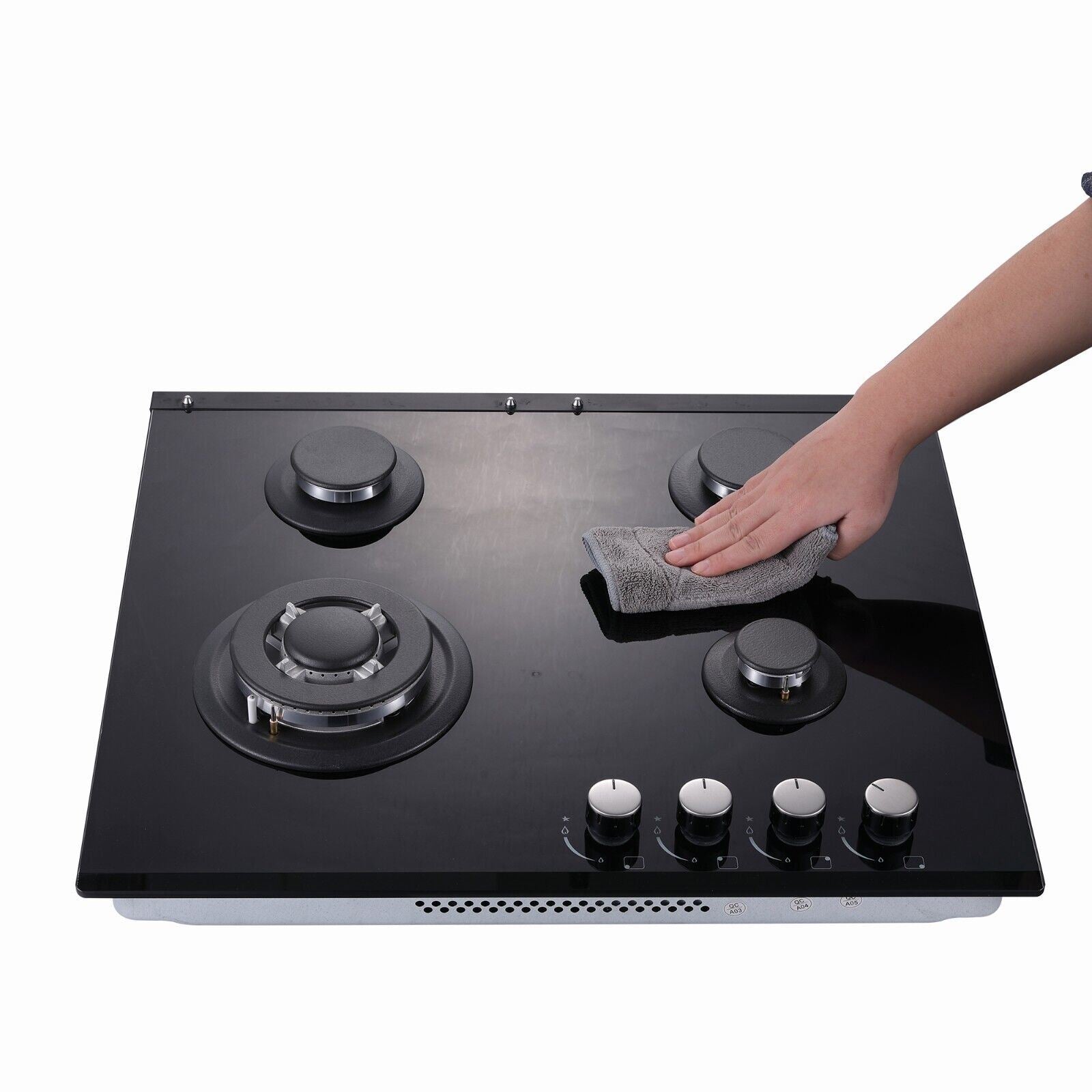

Eascookchef Gas Cooktop 24 inch, 8mm Tempered Glass in Black

Fuel type: Natural Gas (NG) are preset and can be replaced with Liquefied Petroleum Gas (LPG) nozzles.

Please note that:

1) Extra LPG Nozzles included in the pageage, the natural gas pressure regulator and the gas pipe are NOT included.

2)It is recommended that gas stove be installed and tested by professionals.

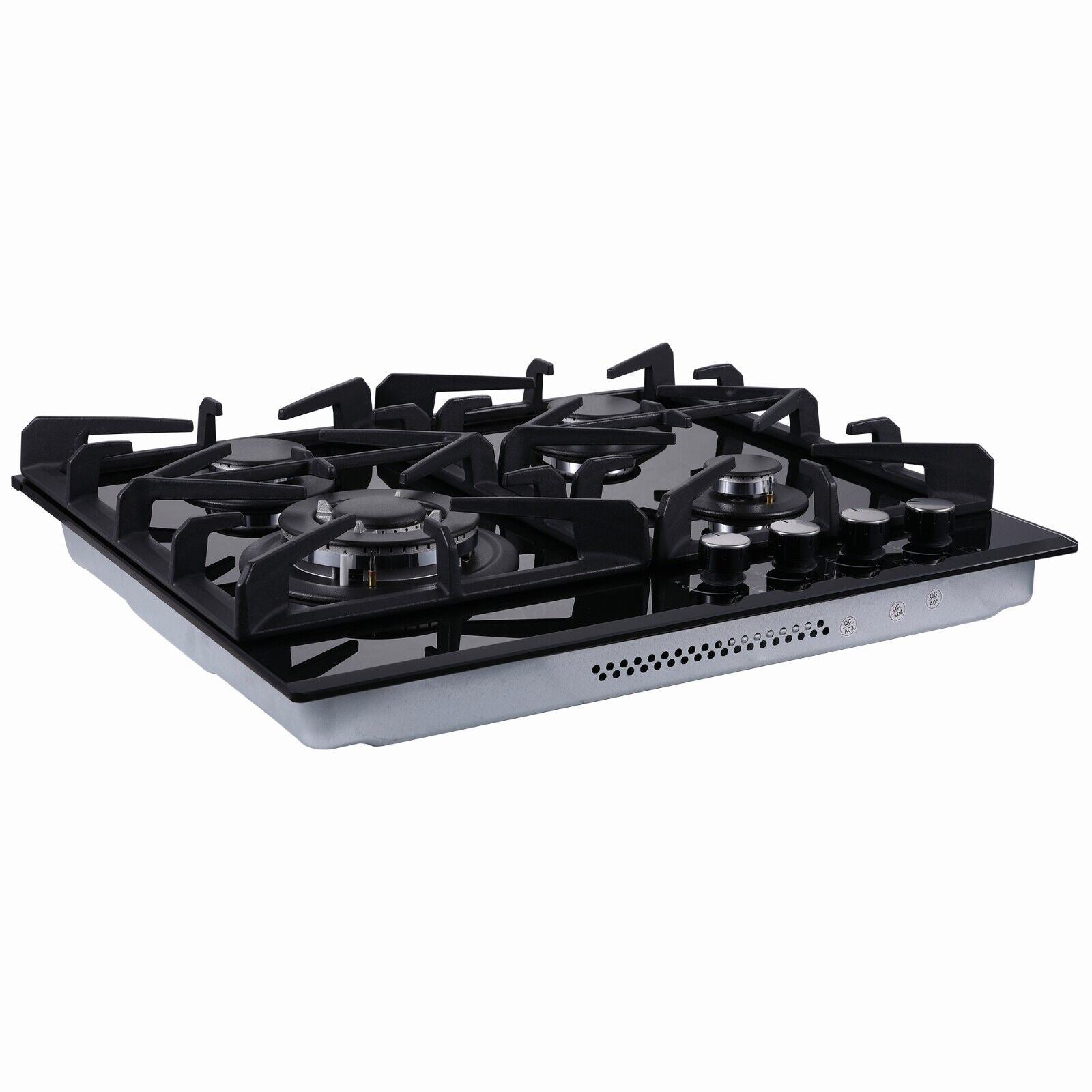

Old-style cooktops usually use plastic at the back side, which is easy to be damaged by aging. Back sides of our gas cooktop is made of stainless steel, it is stronger, more anti-wear and safer and has a longer service life.

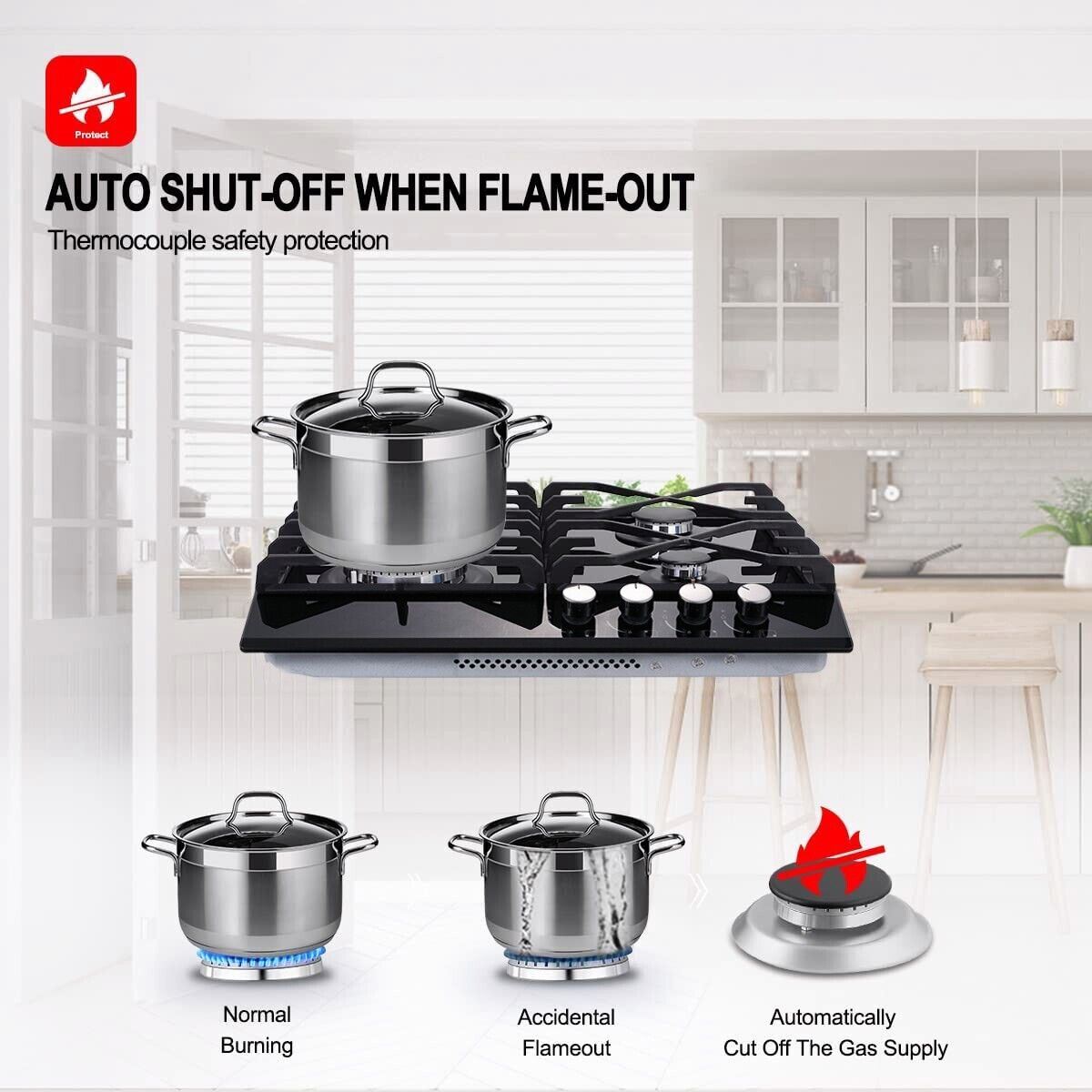

THERMOCOUPLE PROTECTION

Every burner unit is installed a thermocouple flame-out failure system (FFD), will automatically cut off the gas supply when the flame goes out unexpectedly, to avoid gas leakage.

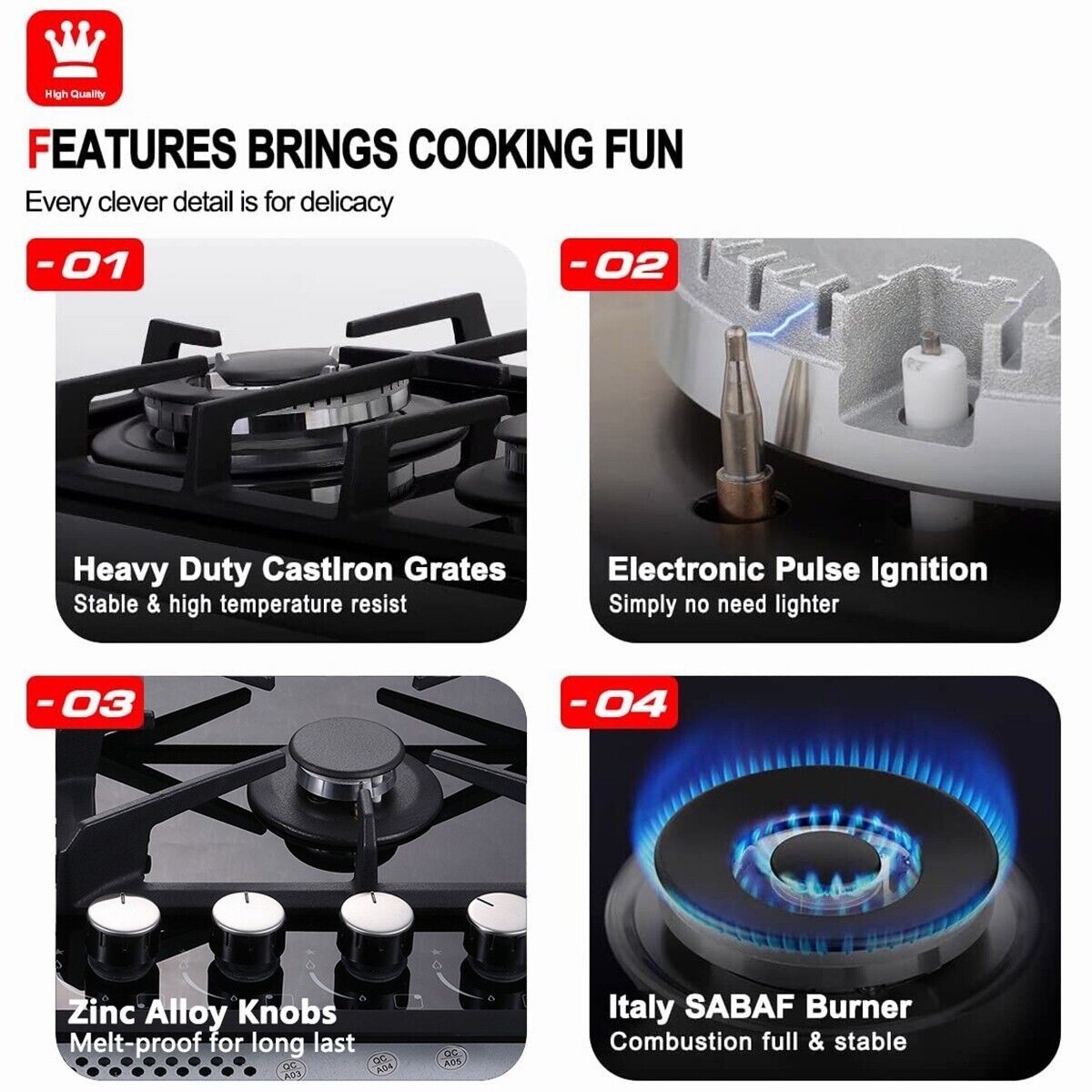

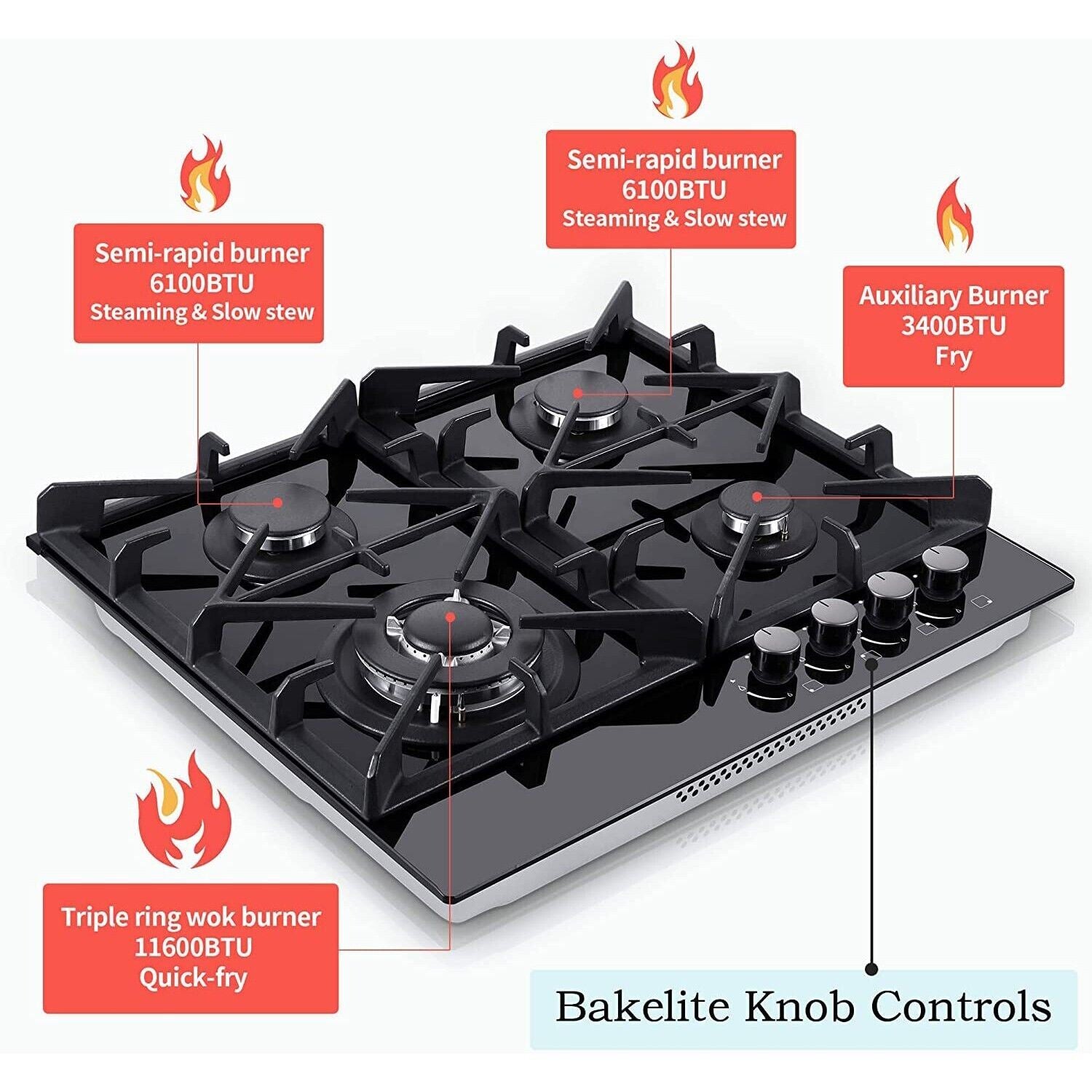

BAKELITE KNOB CONTROLS

Melt-proof and anti-scalding bakelite knob controls,with child protection lock,need to press and rotate at the same time to ignite, preventing children from accidentally touching.

HEAVY-DUTY CAST IRON POT STAND

One-piece heavy cast iron grate, easy to assemble and remove, will not deformed. The unique eight-claw structure is stronger and more stable than the four-claw and six-claw grate, can support the pot firmly, avoid letting the pan slip off.

Installation of built-in gas cooktop

This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

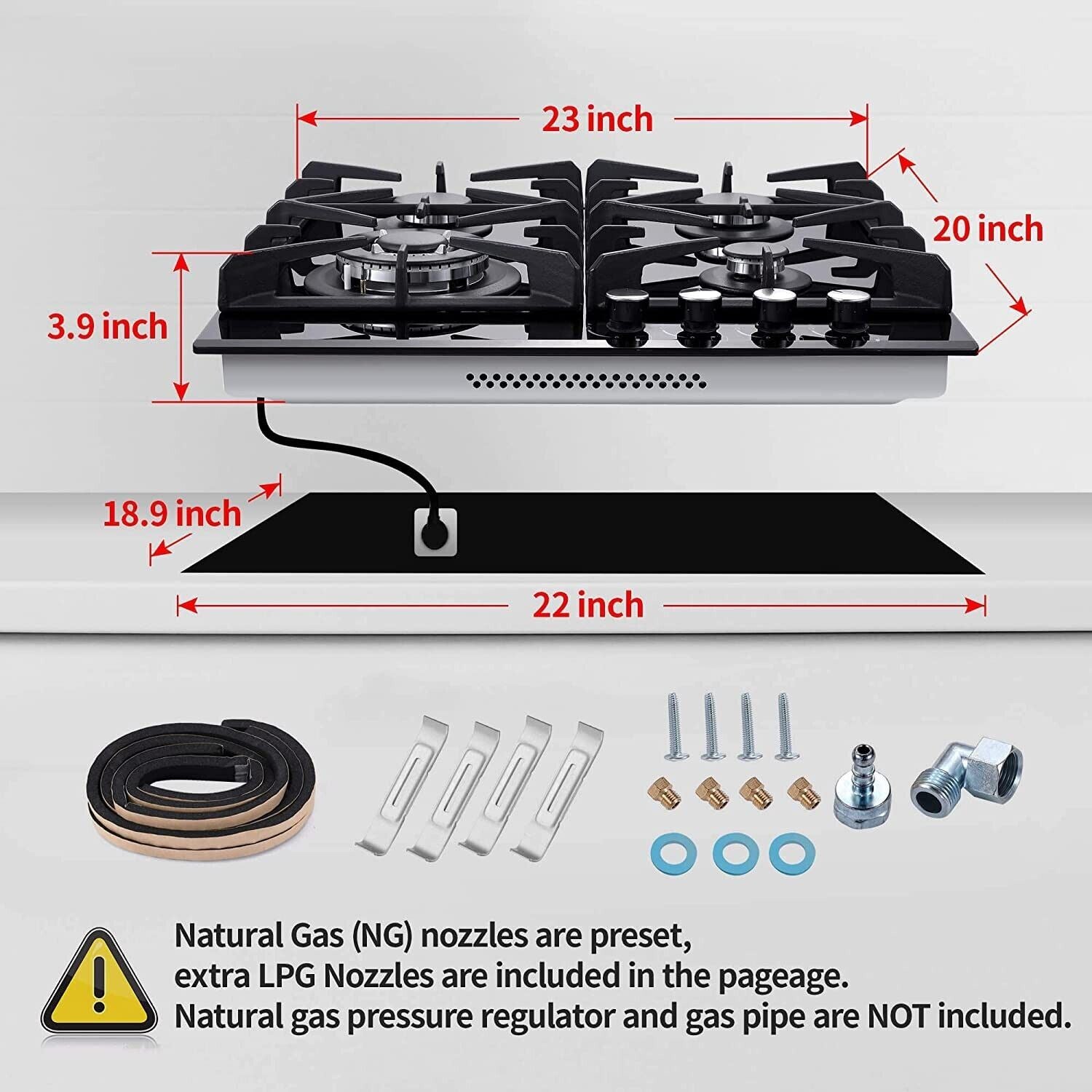

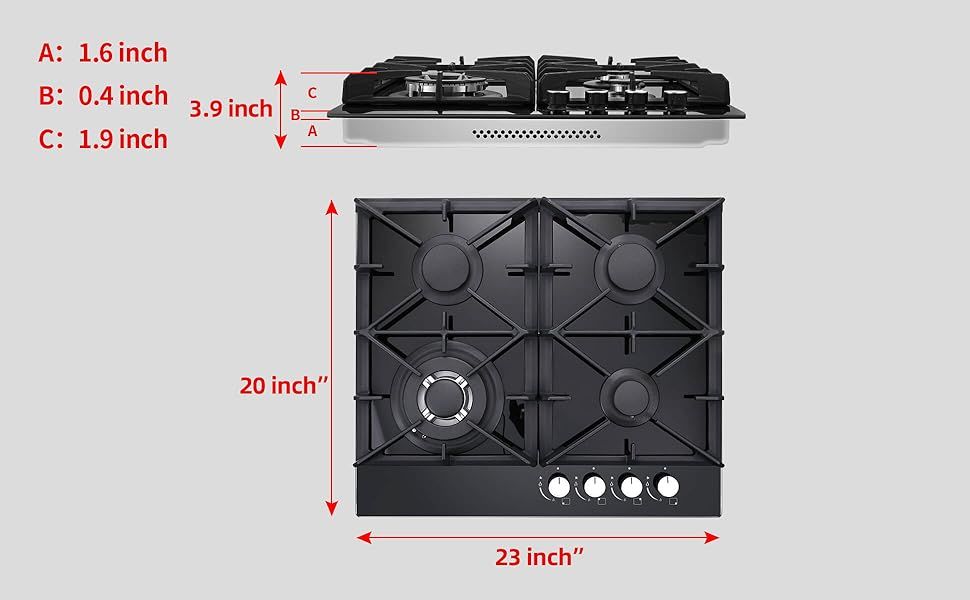

Product Dimensions: 23.0" W x 20.1" L x 3.9"H

Cut out Dimensions: 22" Wx 18.9" L

For a correct installation, the following precautions must be followed:

a) Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness

b) In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79 inch distance from the bottom of cooktop.

c) When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of 1.78 x 22 inch at least from the back side.

Pan Support Material:Heavy-Duty Cast Iron

Control Type: Bakelite Knobs Control

Ignition Type: Electronic pulse ignition

Voltage: 110V, 3-prong plug

Cable Length: 4.5 Feet

Installation Type: Built-in
